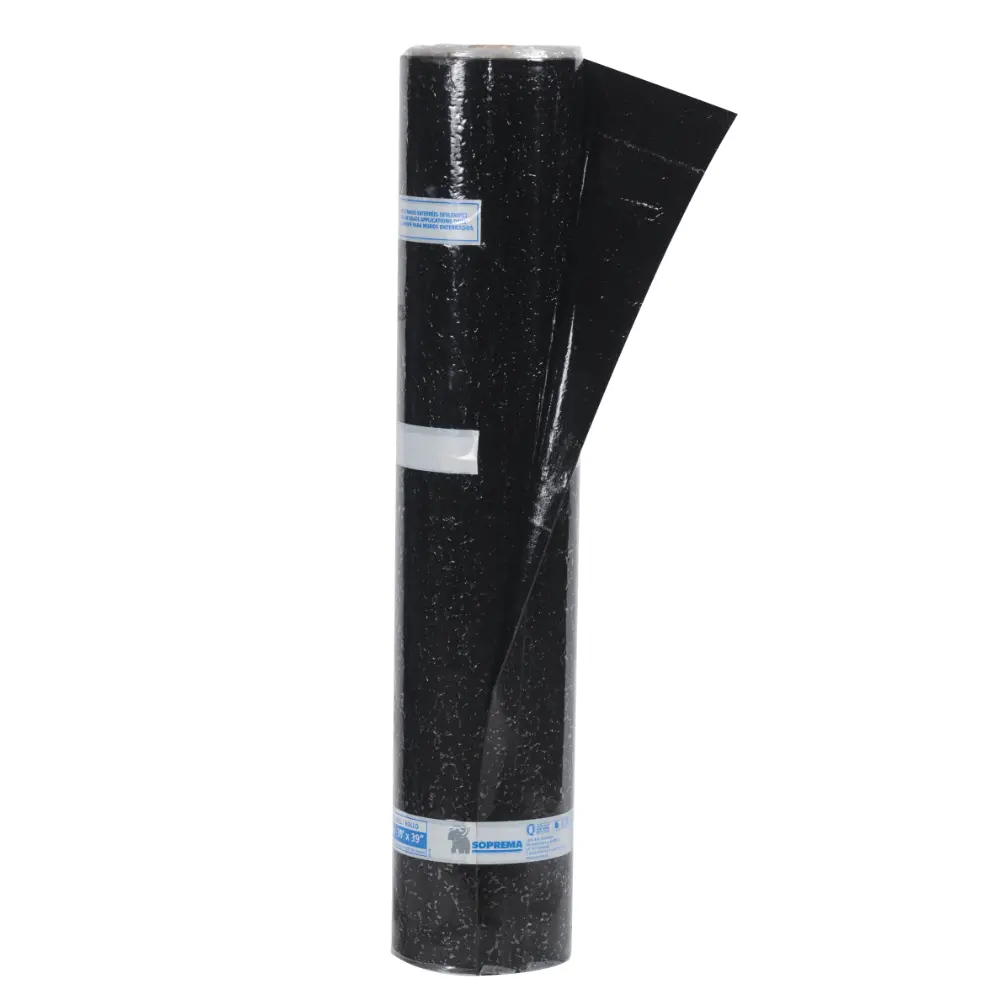

COLPHENE BSW V 3.0

High-performance composite sheet for substructure waterproofing.

Name: COLPHENE BSW V 3.0
Brand: Soprema
Availability: InStock

COLPHENE BSW V 3.0 is a high-performance, fully bonded composite sheet membrane specifically designed for blind side waterproofing in below grade applications. This advanced product features a proprietary blend of elastomeric SBS modified bitumen and a stable composite reinforcement, ensuring durability and robust protection against water infiltration.
Its unique DUO SELVEDGE technology enables effective heat-welding for secure installations, making it a reliable choice for construction projects.

Product Videos

Technical Details

COLPHENE BSW V 3.0 is designed for various applications in substructure waterproofing:

Blind side waterproofing assemblies
Pre-applied below grade waterproofing systems
Protection against hydrostatic pressure
Resistance to lateral water migration
Applications requiring robust chemical resistance

COLPHENE BSW V 3.0 offers a range of advantages that make it a superior choice for substructure waterproofing:

Tenacious and coherent bond strength to poured concrete
Exclusive and homogenous DUO SELVEDGE technology for safer installations
Durable value engineering solution for sub-structure waterproofing
Resistant to aggressive chemicals, radon gas diffusion, and methane gas permeability
Robust against static and kinetic forces with crack bridging ability
Watertight with high resistance to hydrostatic pressures and lateral water migration
UV and elevated temperature exposure capabilities

COLPHENE BSW V 3.0 is equipped with advanced technical properties that enhance its performance and reliability in various waterproofing applications:

Property	Value	Standards
Colour	Black	–
Thickness (Gross)	3.0 mm	ASTM D5147
Roll dimension	10 x 1 m	–
Roll weight	38 kg	–
Rolls per pallet	28	–
Underface	Thermofusible Film	–
Surface	Specially Engineered Silicon Dioxide Crystals	–
Side-Lap Width	12 cm	–
Tensile strength @ peak load, MD / CMD	15 / 10 kN/m	ASTM D5147
Elongation @ break, MD / CMD	45 % / 60 %	ASTM D5147
Tear strength, MD / CMD	600 N / 400 N	ASTM D5147
Resistance to puncture, MD / CMD	ASTM E154	–
Radon gas diffusion coefficient	2.9 (± 0.3) x 10^-11 (m/s) @ 20 °C	ISO/TS 11665 – 13
Methane gas transmission	64 cm² / (m.d.bar) @ 23 °C	ISO 15105 – 1
Heat resistance @ 2 Hrs.	105 °C	ASTM D5147
Water vapour permeance	< 2.1 ng / (Pa • S • m²)	ASTM E96 method B
Water absorption @ 24 hrs	< 0.5 %	ASTM D570
Adhesion to poured structural concrete, 22 °C	3400 N/m	ASTM D903
Resistance to hydrostatic head	> 110 m	ASTM D5385
Lateral water migration	> 110 m	ASTM D5385
Low temperature flexibility	Unaffected @ -30 °C (-22 F)	ASTM D5147

COLPHENE BSW V 3.0 is versatile and effective for various applications in substructure waterproofing:

Blind Side Waterproofing:
Utilized in blind side waterproofing assemblies, providing a reliable barrier against water infiltration.

Pre-Applied Below Grade Systems:
Ideal for pre-applied below grade waterproofing systems, ensuring integrity before the construction of structural elements.

Hydrostatic Pressure Protection:
Offers robust resistance to hydrostatic pressure, making it suitable for use in areas prone to groundwater exposure.

Lateral Water Migration Resistance:
Engineered to resist lateral water migration, ensuring long-lasting durability in demanding environments.

Chemical Resistance:
Designed for applications requiring protection against aggressive chemicals, enhancing its effectiveness in challenging conditions.

COLPHENE BSW V 3.0 is available in convenient packaging to meet project needs:

Roll dimension: 10 x 1 m
Roll weight: 38 kg
Rolls per pallet: 28

Warranty Information: For detailed warranty information regarding COLPHENE BSW V 3.0, please contact our SMCC team using any of the available contact methods on this page for assistance.

Product FAQ

What is COLPHENE BSW V 3.0 suitable for?

COLPHENE BSW V 3.0 is suitable for blind side waterproofing assemblies, pre-applied below grade waterproofing systems, protection against hydrostatic pressure, resistance to lateral water migration, and applications requiring robust chemical resistance.

How is COLPHENE BSW V 3.0 installed?

COLPHENE BSW V 3.0 is installed by ensuring surface preparation for a clean, dry substrate. The membrane is rolled out and positioned, aligning the side-laps for heat-welding. Using a propane torch or hot air gun, the DUO SELVEDGE technology allows for secure bonding to the structural concrete, ensuring a watertight seal. Proper handling and safety measures should always be followed during installation.

What are the benefits of using COLPHENE BSW V 3.0?

Using COLPHENE BSW V 3.0 offers several key benefits: it provides exceptional bond strength to poured concrete, ensuring reliable waterproofing; its DUO SELVEDGE technology enhances installation safety and efficiency; it resists aggressive chemicals, radon, and methane, making it suitable for challenging environments; the membrane is robust against both static and kinetic forces with crack bridging ability; it maintains watertight integrity under high hydrostatic pressures and lateral water migration; and it is durable under UV exposure and high temperatures, ensuring long-lasting performance in substructure construction.

What standards does COLPHENE BSW V 3.0 meet?

COLPHENE BSW V 3.0 meets standards including ASTM D5147, ASTM E154, ASTM D903, ASTM D570, ASTM E96, ISO/TS 11665-13, and ISO 15105-1, ensuring high performance and reliability in waterproofing applications.

What is the warranty for COLPHENE BSW V 3.0?

The warranty for COLPHENE BSW V 3.0 varies by project. Please contact SMCC for specific details.

What are the technical properties of COLPHENE BSW V 3.0?

COLPHENE BSW V 3.0 features several key technical properties: it has a thickness of 3.0 mm and a tensile strength of 15/10 kN/m (MD/CMD). The product offers an elongation at break of 45%/60% and a tear strength of 600 N/400 N (MD/CMD). It exhibits low water absorption (<0.5%) after 24 hours and provides resistance to hydrostatic pressure greater than 110 m. Additionally, it demonstrates excellent adhesion to poured structural concrete (3400 N/m) and maintains flexibility at low temperatures, unaffected down to -30 °C. The surface includes specially engineered silicon dioxide crystals for enhanced performance.
