nVent

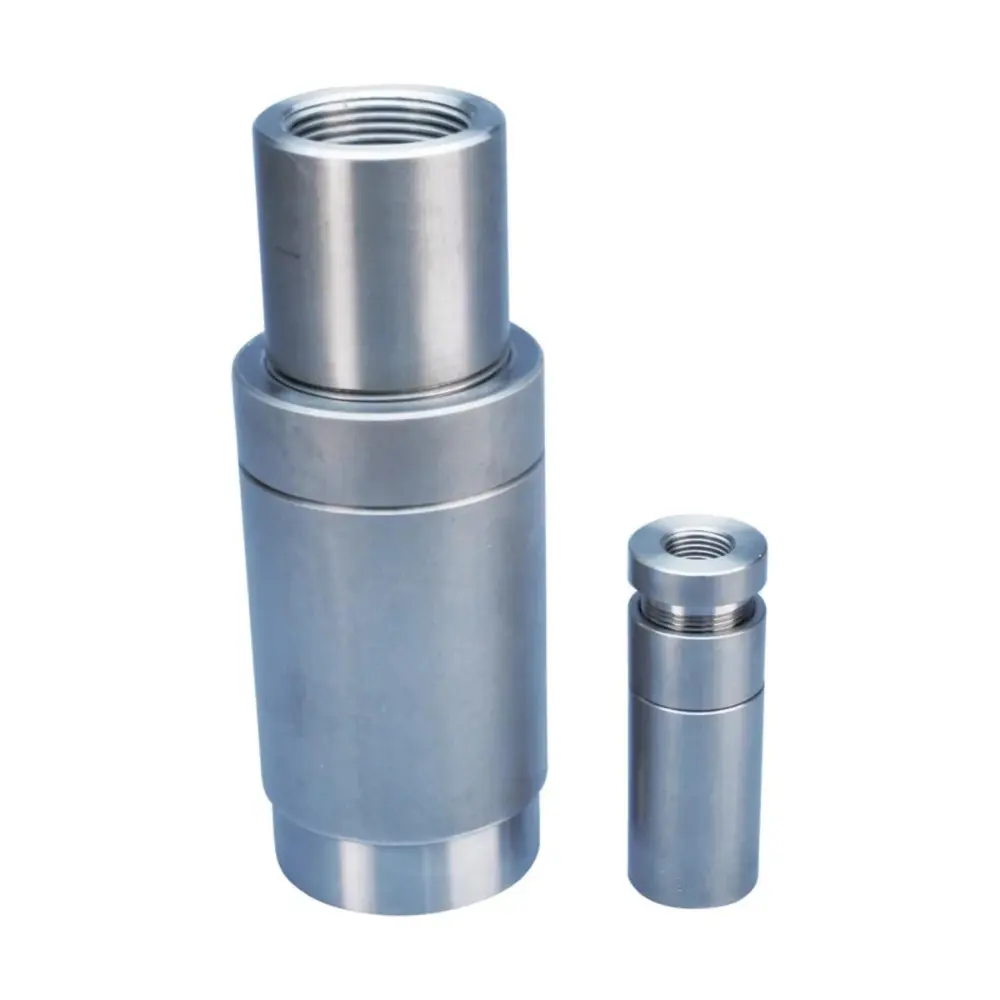

nVent LENTON Position Couplers

High-strength couplers for splicing rebar connections.

nVent LENTON Position Couplers are engineered to provide a reliable and efficient solution for splicing curved, bent, or straight rebar connections. Their unique design accommodates situations where bars cannot be rotated or have restricted axial movement, ensuring secure connections in various construction applications.
These couplers comply with international standards, making them suitable for projects across Europe, the Middle East, Africa, Asia, and Australia.

Awaiting product image

Product Videos

Technical Details

The nVent LENTON Position Couplers are optimized for a variety of applications, including:

  • Splicing prefabricated rebar cages.
  • Connecting curved or bent rebar sections.
  • Joining straight bars in confined spaces.
  • Achieving secure connections where bars cannot be rotated.
  • Utilizing in construction projects requiring compliance with international standards.

The nVent LENTON Position Couplers offer several advantages that enhance their effectiveness in various construction scenarios:

  • Quick and efficient splicing of rebar connections, saving time on site.
  • Compatible with both curved and straight bars, providing flexibility in application.
  • Designed for use in restricted spaces, ensuring versatility in challenging environments.
  • Corrosion-protected female parallel thread enhances durability and longevity.
  • Meets multiple international standards, ensuring quality and reliability.

The nVent LENTON Position Couplers are designed with precision and adhere to stringent technical specifications for optimal performance:

Rebar Size Designation Part No. A (mm) B (mm) Fc (mm) Max. Fo (mm) D (mm) Weight (kg)
10 EL10P13L 25 70 50 85 18 0.36
12 EL12P13L 25 75 49 85 19 0.36
14 EL14P13L 25 82 51 90 21 0.37
16 EL16P13L 30 88 56 97 24 0.59
18 EL18P13L 35 100 61 107 29 0.85
20 EL20P13L 35 125 73 135 35 1.09
22 EL22P13L 40 132 77 141 37 1.55
25 EL25P13L 45 140 80 146 40 1.94
28 EL28P13L 50 147 83 151 42 2.53
30 EL30P13L 55 169 93 171 52 3.35
32 EL32P13L 60 156 93 164 45 3.96
34 EL34P13L 60 177 103 184 55 4.28
36 EL36P13L 65 172 99 177 52 5.01
38 EL38P13L 70 174 103 183 53 6.05
40 EL40P13L 70 184 106 190 57 6.18
43 EL43TP13L 75 213 127 219 66 8.24
50 EL50TP13L 90 224 135 230 70 11.71
57 EL57TP13L 100 256 148 257 83 17.11

The nVent LENTON Position Couplers are designed for a wide range of applications in the construction industry, ensuring versatility and reliability in various environments:

Splicing Prefabricated Rebar Cages:
Utilize the couplers for efficiently joining prefabricated rebar cages, which streamlines construction processes and enhances overall structural integrity.
Connecting Curved or Bent Rebar Sections:
The design allows for effective connections of curved or bent rebar, accommodating complex structural requirements without compromising strength.
Joining Straight Bars in Confined Spaces:
Ideal for situations where space is limited, these couplers provide secure connections in tight locations, facilitating easier installation.
Achieving Secure Connections Where Bars Cannot Be Rotated:
The unique features of the couplers ensure reliable splicing even when bars are restricted from rotation, maintaining stability and strength throughout.
Compliance with International Standards:
These couplers are engineered to meet various global standards, making them suitable for use in international projects, thereby offering peace of mind regarding quality and safety.

The nVent LENTON Position Couplers are packaged to ensure safe transportation and easy handling:

  • Individual couplers are wrapped in protective materials to prevent damage during transit.
  • Packaged in sturdy boxes designed for stacking and secure storage.
  • Each box includes labeling with product specifications and handling instructions.
  • Available quantities per box may vary according to the specific coupler size.

For warranty information and support regarding the nVent LENTON Position Couplers, please contact our SMCC team using any of the available contact methods on this page. We are here to assist you!

Product FAQ

The main applications for Position Couplers include splicing prefabricated rebar cages, connecting curved or bent rebar sections, joining straight bars in confined spaces, and ensuring secure connections where bars cannot be rotated.
Position Couplers comply with international standards including BS EN 1992-1-1, DIN EN 1992-1-1, ACI 318, and IBC.
Position Couplers enhance construction efficiency by enabling quick and secure splicing of rebar, minimizing installation time. Their design allows for connections in restricted spaces and situations where bars cannot be rotated, streamlining the construction process. Additionally, compliance with international standards ensures reliability and reduces the likelihood of rework, contributing to overall project productivity.
The nVent LENTON Position Couplers are available in various sizes ranging from 10 mm to 57 mm in rebar diameter, including specific designs such as P8 and P13 styles. For detailed specifications on each size, please refer to the technical information section.
The advantages of Position Couplers include quick and efficient splicing of rebar connections, compatibility with both curved and straight bars, versatility in restricted spaces, corrosion-protected threads for enhanced durability, and compliance with multiple international standards ensuring quality and reliability.
The weight range for Position Couplers is approximately 0.36 kg to 17.11 kg, depending on the specific size and model of the coupler.
