CETCO

WATERSTOP-RX

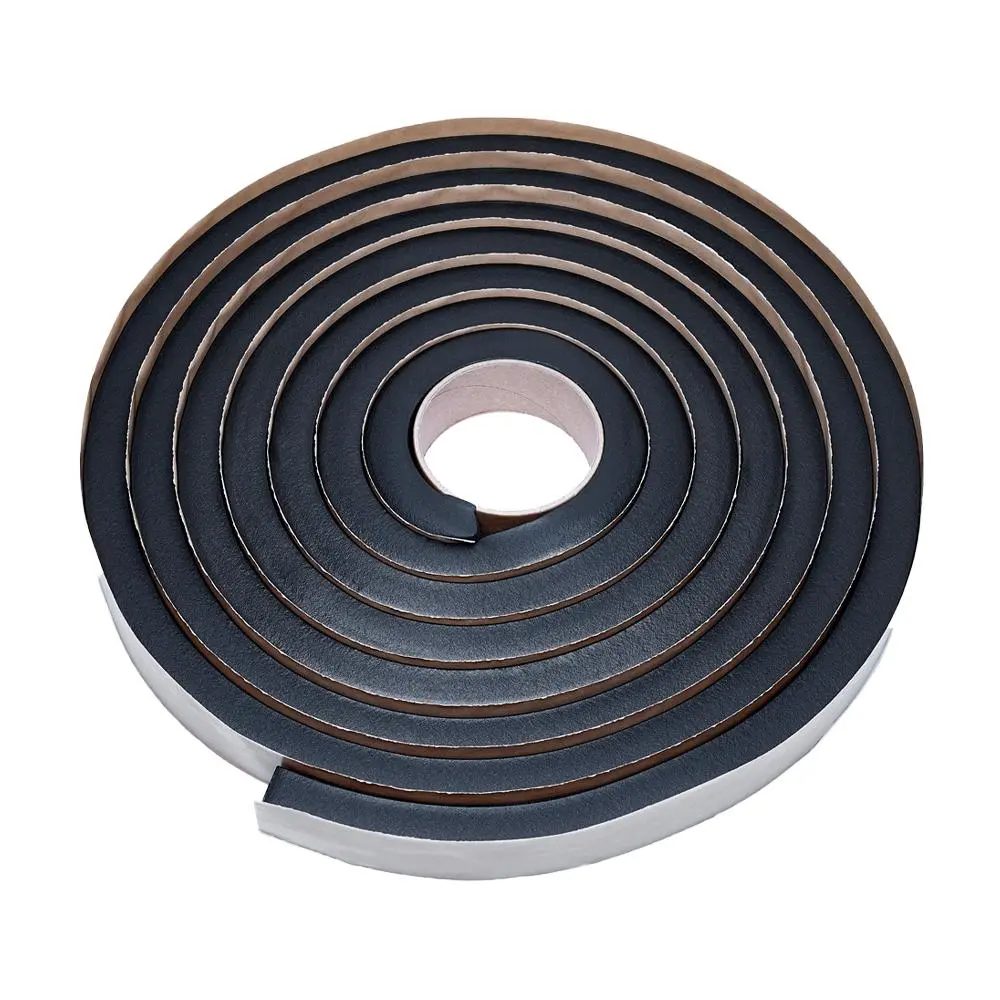

Hydrophilic expanding waterstop for concrete joints.

WATERSTOP-RX is an advanced hydrophilic waterstop designed to effectively prevent water infiltration through concrete construction joints. Its unique expanding properties activate upon contact with water, creating a robust seal that fills voids and cracks, ensuring long-lasting performance.
Ideal for both vertical and horizontal applications, WATERSTOP-RX enhances structural integrity in various concrete projects.

WATERSTOP-RX

Product Videos

Technical Details

WATERSTOP-RX is versatile and suitable for various applications in concrete construction:

  • Vertical concrete joints of 150 mm thick or greater.
  • Horizontal concrete joints of 100 mm thick or greater.
  • Concrete with one or two rows of steel reinforcement.
  • Shotcrete foundation walls.
  • High hydrostatic pressure situations.
  • Tie-back plates and penetrations.
  • Fountains, planter boxes, and curbs.
  • Sealing around plumbing and utility pipe penetrations.

WATERSTOP-RX offers numerous advantages that enhance its effectiveness in preventing water infiltration through concrete joints:

  • Hydrophilic properties activate upon contact with water for a reliable seal.
  • Superior expansion capabilities effectively fill voids and cracks in concrete.
  • Tested to withstand over 60 meters of hydrostatic water pressure.
  • Suitable for both vertical and horizontal applications in various construction types.
  • Eliminates the need for special pieces, split-forming, and seam welding.
  • Compatible with REVO-FIX for secure installation.
  • Resists damage from wet/dry cycling without deterioration.
  • Provides a long-lasting solution for high hydrostatic pressure environments.

WATERSTOP-RX is designed with exceptional technical specifications to ensure optimal performance in various concrete applications:

PROPERTY TEST METHOD VALUE
Hydrostatic Head Resistance Independent Test 70 m
Wet / Dry Cycling Independent Test No Effect (25 Cycles @ 70 m)
Adhesion to Concrete Independent Test Excellent

WATERSTOP-RX is suitable for a wide range of applications in concrete construction, ensuring effective water penetration prevention:

Vertical Applications:
  • Vertical concrete joints of 150 mm thick or greater.
  • Concrete with two rows of steel reinforcement.
  • Shotcrete foundation walls.
Horizontal Applications:
  • Horizontal concrete joints of 100 mm thick or greater.
  • Concrete with one row of steel reinforcement.
  • Slabs containing only wire mesh.
Special Situations:
  • High hydrostatic pressure situations.
  • Tie-back plates and penetrations.
  • Sealing around plumbing and utility pipe penetrations.
General Installation:

WATERSTOP-RX can be installed at all wall pour joints, slab pour joints, footing/wall joints, and can be connected with reinforcing steel to form a continuous waterstop.

The packaging details for WATERSTOP-RX are as follows:

  • RX-101: 30 m per box, 25 mm x 19 mm rectangular shape, requiring a minimum concrete coverage of 75 mm.
  • RX-103: 48 m per box, 15 mm x 10 mm rectangular shape, requiring a minimum concrete coverage of 50 mm.

CETSEAL and REVO-FIX are packaged separately.

WATERSTOP-RX is warranted to be free from defects in material and workmanship. For more information regarding our warranty, please contact our team at SMCC using any of the contact methods available on this page.

Product FAQ

WATERSTOP-RX requires a minimum concrete thickness of 150 mm for vertical applications and 100 mm for horizontal applications.
WATERSTOP-RX works by expanding upon contact with water, creating a robust seal that fills voids and cracks in concrete joints. This hydrophilic action prevents water infiltration and ensures a strong barrier against leakage in both vertical and horizontal applications.
To install WATERSTOP-RX, ensure the surface is clean and dry. Remove the release paper from the waterstop and apply a continuous bead of CETSEAL adhesive along the substrate where the waterstop will be placed. Press the WATERSTOP-RX firmly against the adhesive, ensuring there are no air gaps. Use REVO-FIX to secure it in place by nailing through lap joints. Maintain a minimum concrete coverage of 75 mm for RX-101 and 50 mm for RX-103. Pour concrete over the installed waterstop to complete the process.
For precast concrete applications, consult the manufacturer for product suitability and specific installation requirements.
WATERSTOP-RX is not intended as the primary sealant for chemical containment. Consult the manufacturer for guidance on chemical compatibility for secondary applications.
Yes, WATERSTOP-RX can be installed on irregular surfaces such as stone or rough concrete, ensuring it remains in direct contact with the substrate for optimal sealing performance.
